MODEL 8112

AC Clamp Adapter
MODEL 8112 clamp adapter is designed as an AC current/voltage conversion probe capable of measuring AC current from 0.1mA to 120A in conjunction with digital multimeters

Range	Measuring Ranges	Output Voltage	Accuracy	Frequency Response
200mA	AC 0 – 500mA	AC1V/A (1000mA→1V)	±1.5%rdg±0.2mA	50Hz – 1kHz
200mA	AC 0 – 1000mA	AC1V/A (1000mA→1V)	±3%rdg±0.4mA	40Hz – 10kHz
2A	AC 0 – 20A	AC100mV/A (20A→2V)	±1%rdg±1mA	40Hz – 1kHz
2A	AC 0 – 20A	AC100mV/A (20A→2V)	±1.5%rdg±2mA	1 – 10kHz
20A	AC 0 – 20A	AC10mV/A (120A→1.2V)	±1%rdg±0.01A	40Hz – 1kHz
	AC 20 – 60A		±2.5%rdg	50Hz – 10kHz
	AC 60 – 120A		±2.5%rdg	100Hz – 10kHz
Conductor Size		Ø8mm max.
Frequency Characteristics		30Hz – 100kHz (-3dB)
Safety Standard		IEC 61010-1 CAT II 100V Pollution Degree 2
Withstand Voltage		500V AC for 1 minute
Dimension		153(L) × 18(W) × 23(D)mm
Weight		Approx. 100g

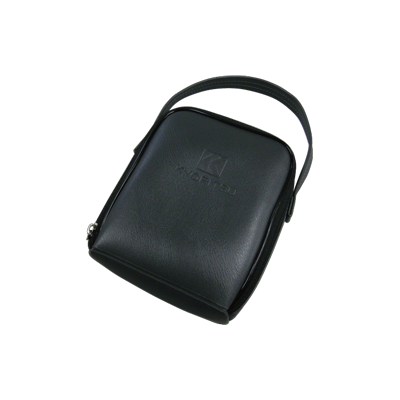

Accessories		9095 (Carrying Case) Instruction Manual

KEW 9095
